Index > MobiFlight Software > 6 digit 7-segments display with Mobiflight ??
icon
Message #21117
Avatar
vperrinfr
Posts: 5
Hi,

Is it a way to enable 6 digit 7-segments display (instead of 8) like that one:



Thanks a lot
2020-12-04 11:11
Message #21118
Avatar
EfvonIks
Posts: 9
Supporter
Hello,

Yes it is possible. You just need a MAX7219 IC and have to wire it like it is described in the data sheet. One Max7219 can support up to 8 Digits.
2020-12-04 11:41
Message #21123
Avatar
pizman82
Moderator
From: ETSI, Germany
Posts: 6010
Supporter
YES Possible.....

Just 2 Notes:

1. It must be "Common CATHODE" . Mostly those Displays are available all in two different layouts..... Common Cathode and Common Anode.
Get sure you use CATHODE .... Else it will NOT work !

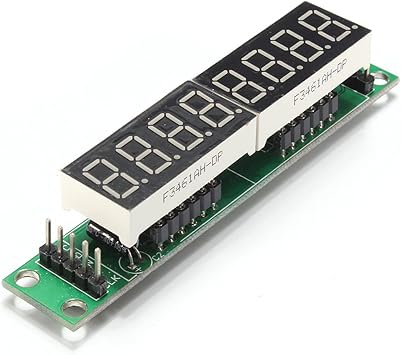

2. Think about Max7219 Tubes ! Buildup a Max7219 Chip by hand can be verry difficult and need good solder skills. Much more comfortable is to use "Tubes" ( Those who have 2x4 Red Displays . There exist 2 kinds.... One with solder Displays.... other with plugged Displays (green PCB mostly).

This is a plugged one ....

Here you can remove the Displays within 1 second and use the now empty Tube as a "controller"
All you need to do now is to wire the 14 Lines from your linked Displays into the now empty conncetors of that Tube ( where the 2x4 was connected before).


EDIT: Check this Video from Karl..... (Starting at Min 20.00) https://www.youtube.com/watch?v=oPKrnKUcAxc
Good Luck !
2020-12-04 16:12
Message #24834
Avatar
alpan
Posts: 15
Hello everybody, Aliexpress sells 7 Segments 5 digits 0.36 inches. The problem is that there are options, I mean 1,2,3,4 or 5 bit common cathode. Does anybody able to help me?
Thanks.
2022-01-09 13:42
Message #24843
Avatar
pizman82
Moderator
From: ETSI, Germany
Posts: 6010
Supporter
Hi....

Please pürevent us from google 20 Minutes.....

If you like our comment or our opinion about a thematic.....
Give us a LINK !

Then we can help !

EDIT.... and by the way.... Please not reopen a over 1 Year old Topic! Make a new one for your request, please!
Good Luck !
2022-01-10 00:07
Message #24846
Avatar
alpan
Posts: 15
Hello Pizman, Ok sorry for this. I'll try to do better next time.
2022-01-10 08:57
