Hi,

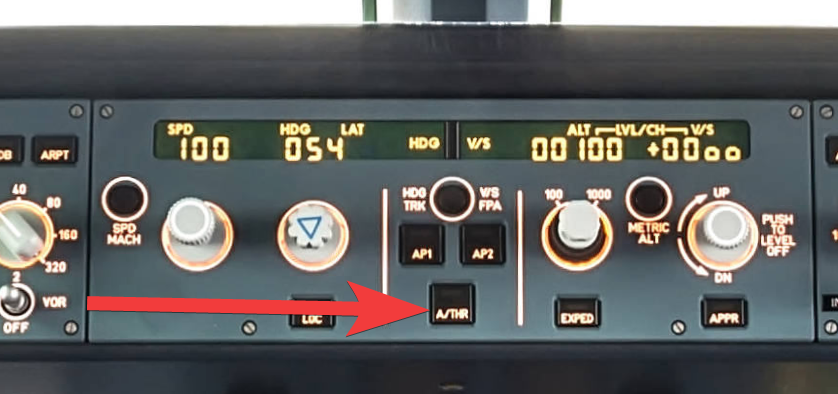

I'm running XP11 with XPUIPC but I cannot seem to find the offset I need for my push-button to control whether or not the autothrottle is engaged. I have tried offset 0810 but it does not have an effect when set to 1 (to engage it). Can someone advise which offset I need? Thank you!

2019-07-07 18:53
Avatar
Cheario
Posts: 7
Found it! The correct offset is for 'Autopilot airspeed hold' which is 07DC.
2019-07-07 20:26
Avatar
rodo2212
Posts: 18
iconCheario:

Found it! The correct offset is for 'Autopilot airspeed hold' which is 07DC.


Hi cheario. I post a new thread to see if someone can help me with. But I will take this chance to post to you too and the rest to see if you can helo to understan how to work with xplane 11 and mobiflight. Please feel free to read my post.

Hi guys. I am new with xuipc and mobiflight. I am getting really confused.Please if someone can help me with this . I have been in contact with supported guys from the community but we can find the problem.
I am needding to set my Radio and Nav swaping radio and nav as well as set the mhz and khz. The thing is that I try the Event ID and no works and Fsuipc and nothing at all.So today I felt lucky and
Hey. Well. I found out one little things still complex and I really dont understand. With the next configuration I could swap de Comm1.
https://mega.nz/file/Zfg3VZRb#8SOlIEgd2YYIy5qhhLnA65iReFef1zdy1D68AJheM9c(is a picture and I could find out how to upload pictures.)
I dont want to be general but it looks like no matter how many bytes you mark in that little windows, the click is no to mark all of them. No idea why. I also attach a documet where I found this 3123 offset value, Probably for you makes sense.
I found another configuration.
https://mega.nz/file/dL5V1LiC#ar9U_gWjzFiEzj_hNtzDDH2NhQkq7YctEV8Jhkrr9jY
This one let change mhz on com1standby. I was playing with the mask editor and sometimes works and others just set 000 at the khz instead of mhz. And with the same configuration just changing the SET VALUE to 10. I can change the khz, but just the first digit, then If I put 15, the khz change in 15khz. I mean if is cero(khz) and i press. It change to 15khz, press again a 30khz. so on. I tried with $+.10, no nothing. and some other number but no lucky.
Well I will try to post this on mobiflight forum.
Regards Luis.
2020-08-26 21:12
